Topographical surveys for architects, engineers and developers

Layered, colour-coded CAD drawings tied to the Ordnance Survey grid, measured by surveyors who answer their own phones. Topographical surveys start from £600 + VAT, and most drawings arrive within 10 working days of the site visit.

  • Topographical surveys from £600 + VAT
  • Drawings tied to OSGB36 and OSTN15
  • Layered DWG and PDF, ready to design over

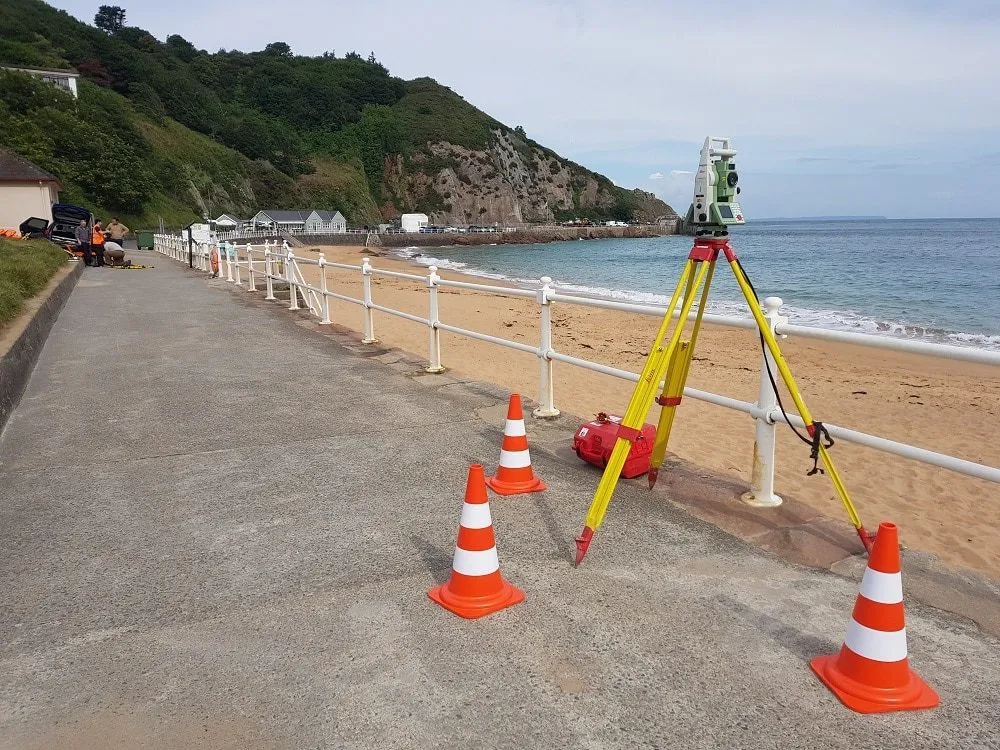

THS Concepts total station set up on a beach promenade in Jersey during a topographical survey
  • TSA member

    The Survey Association

  • Over 4,000 surveys

    Surveying since 2013

  • Quotes in one working day

    Fixed price, confirmed timescales

  • Fully insured

    £1m PI, £5m public liability

Topographical, land, topo and site surveys

A topographical survey, land survey, topo survey and site survey are the same piece of work. A land surveyor visits your site, measures the position and level of everything on it, and produces a scaled drawing your team can design from.

The name changes depending on who is asking. Architects and engineers specify a topographical survey. Planning consultants and homeowners say land survey. Contractors say site survey. If your drawing schedule or planning officer has asked for any of them, this is the service you need. For a fuller explanation of what the drawing shows and how to read it, see our guide What is a topographical survey?

What you get

Your survey arrives as a scaled CAD drawing (.dwg) with a matching PDF, tied to the Ordnance Survey grid: OSGB36 for position and OSTN15 for height. It drops into your model at the right coordinates and the right level, with no re-basing and no chasing us for a datum.

The drawing shows boundaries, levels and contours, buildings, hard and soft landscaping, trees, kerbs, drainage covers and the services visible at ground level. Every drawing is layered to a consistent standard and checked before it leaves us.

Topographical survey drawing of a long residential plot with buildings, trees and section markers

What a land surveyor does on site

A land surveyor measures the position, level and shape of everything on the site and turns those measurements into a scaled drawing. On a topographical survey that means setting up survey control tied to the Ordnance Survey grid, then recording boundaries, buildings, levels, kerbs, trees, drainage covers and visible services with GNSS RTK receivers and total stations. Most residential plots are surveyed in a day. The control stations stay on site, ready for setting out later.

What a topographical survey is used for

A topographical land survey is needed whenever a project has to start from an accurate picture of the existing site.

  • Planning applications. Site plans at existing levels for the drawings and supporting documents, see topographical surveys for planning applications.
  • Building design. Architects design around the real levels, boundaries, trees and access.
  • Engineering design. Levels and features for drainage, access roads, retaining walls and external works, with level surveys where only heights are needed.
  • Land development. Constraints and usable area assessed before design fees are committed.
  • Flood risk assessments. Floor, threshold and ground levels to Ordnance Datum, see flood risk level surveys.
  • Earthworks. Cut and fill and stockpile quantities from a surveyed surface, see volume surveys.
  • Construction. Contractors use the land survey to understand the site before work starts, and the same control for setting out.

Why the survey matters

Existing structures, drainage runs, trees and level changes recorded at the start show up at design stage, not as a change order on site. Because the control is tied to the OS grid and left on site, the survey still works when the next consultant joins the project or the contractor arrives to set out.

Accuracy and specification

The right level of detail depends on what the drawing is for. A 1:200 survey for a house extension needs a different density of levels and features from a 1:500 survey of a development site or a highways scheme. Tell us what the survey is for and we will set the detail to suit, or work to your own specification or office template where you have one. The survey notes on every drawing state the datum, the control and what was captured, so the next consultant knows exactly what they are working from.

What a topographical survey does not include

A topographical survey records the physical features on site as they stand, including the walls, fences and hedges along its edges. It does not decide where a legal boundary lies. It does not show services below ground unless a PAS 128 utility survey is added, and internal layouts and elevations of buildings belong to a measured building survey.

Adding to the survey

Most planning applications need more than the site plan. In the same visit, on the same survey control, we can add street scene elevations of your building and its neighbours, measured roof plans, an underground utility survey and aerial imagery from a drone survey. Every drawing then lines up with the others.

Topographical surveys in London, Essex and the South East

Most of our topographical surveys are in London, Essex, Kent, Hertfordshire and the rest of the South East. We travel nationwide for framework clients and one-off projects, and have surveyed tidal beaches in Jersey, a live port in Liberia and solar farms mid-construction. If access is the problem, tell us. It usually is not one.

Types of topographical surveys

  • Planning application surveys

    The existing site information your planning drawings depend on: levels, boundaries, trees, access and neighbouring buildings, tied to the OS grid and drawn ready for your architect to design over.

  • Level surveys

    Spot heights, floor levels and falls measured to OS datum or a site datum, for drainage design, slab and screed checks, flood risk assessments and site grading.

  • Utility surveys

    Gas, electric, water, telecoms and drainage traced with ground-penetrating radar and electromagnetic location, and mapped to the OS grid before you dig. Surveyed to PAS 128 Quality Level B as standard.

  • Flood risk level surveys

    A focused topographical survey of your site showing the levels of the land, with floor and threshold levels, all to Ordnance Survey datum. Exactly what a flood risk assessment needs, without paying for a full survey.

  • Volume surveys

    Repeatable cut and fill, stockpile and excavation volumes from GNSS RTK or drone surveys, reported by material where needed, for earthworks design, valuations and contractor payments.

How it works

  1. Quote within one working day

    Send a location plan with the survey area marked. We reply with a fixed price, a survey date and a date for your drawings.

  2. Site survey, usually one day

    We capture the site with GNSS RTK receivers and total stations, to your specification or our own standard, and photograph it as we go.

  3. Processing, usually 2 to 5 days

    We draft the survey in CAD, layered to our standard or to your office template, and check every drawing before it leaves us.

  4. Drawings issued

    You receive .dwg and PDF files at the right coordinates and levels. Questions go straight to the surveyor who measured your site.

What it costs

Topographical surveys start from £600 + VAT. The price then depends on the size of the area, the level of detail and how easily we can get around the site. Send us the address and we will give you a fixed price.

Read our full guide to topographical survey costs

Typical jobGuide price
Single residential plot or extension£600 to £1,500
Larger residential or small commercial£1,500 to £2,500
Commercial or infrastructure siteFrom £2,500

Prices exclude VAT and assume normal working hours and unrestricted access.

Who we work with

  • Architects

    A base drawing to design over, at the right coordinates and the right levels.

  • Civil and structural engineers

    Levels, gradients, drainage covers and invert levels for drainage and highways design.

  • Developers and planning consultants

    The survey your planning application needs, before you commit to design fees.

  • Homeowners and self-builders

    A survey of your plot or garden for an extension, basement or new build. Yes, we survey single houses.

  • Main contractors

    A site survey for setting out, earthworks volumes and progress records.

Recent projects

See all projects

Essex

Dunton Road, Basildon

A 35 hectare development site captured by drone LiDAR, with ground control, for a land developer.

Drone LiDAR surveys, Topographical surveys

Essex

Foulness Island drainage scheme

Land, dyke and water levels across a working MOD island, captured for a civil engineer designing a new drainage scheme.

Hydrographic surveys, Topographical surveys, Drone surveys

Essex

St Christopher's School, Leigh-on-Sea

A combined 3D laser scan and topographical survey of a working school, delivered for an architect preparing a planning application.

Planning application surveys, 3D laser scanning

★★★★★

We used THS Concepts for a topographical survey of a plot of land we're looking to develop with new houses. From the first contact they were easy to deal with and got the survey scheduled in quickly. …

Adam M

★★★★★

We booked a Topographical survey with THS. The response time was really quick and our job was booked in and carried out within a week. I received the results immediately. Really great service and competitive price wise compared to other quotes. …

Mark Maher

★★★★★

THS Concepts perform regular topographical surveys for my company (RJB Architect). The information they produce is exceptional, prices competitive and the team are all very helpful and personable. …

Richard BaileyRJB Architect

Topographical surveys: common questions

Is a land survey the same as a topographical survey?

Yes. In the UK the terms are used interchangeably, along with site survey and topo survey. All of them describe a measured, scaled drawing of a site's features and levels. Architects and engineers usually write topographical survey in their specifications.

Do I need a topographical survey for planning or an extension?

Usually, yes, for anything beyond a minor extension. Our page on topographical surveys for planning applications explains what planners and architects need.

Will the survey show underground drains and services?

Not by default. A topographical survey records what is visible at ground level, including covers, gullies and service markers. If you need the runs between covers, we can lift covers and measure invert levels, or carry out a full underground utility survey. Tell us at quote stage.

What is a site survey?

Site survey is the contractor's and developer's name for a topographical survey: a measured drawing of a site's existing features and levels, produced before design or construction begins. We deliver site surveys as layered .dwg drawings tied to the OS grid.

What file formats do you deliver?

Standard delivery is .dwg and PDF, both on the OS grid. Revit (.rvt) and DXF are available on request, plus point cloud files where 3D laser scanning is added.

What equipment do you use?

GNSS RTK receivers and total stations on site, and BricsCAD for drawing production. For complex or hard-to-reach sites we add 3D laser scanning and drone photogrammetry.

What is the difference between a topographical survey and a measured building survey?

A topographical survey records the land: levels, boundaries, trees, drainage and hard surfaces. A measured building survey records the building: floor plans, elevations and sections. Many projects need both.
