What a utility survey is

A utility survey locates and maps the services under a site before anyone digs. Our technicians use electromagnetic location (EML) and ground-penetrating radar (GPR) to trace gas, water, electricity, telecoms and drainage, then plot them on a scaled drawing referenced to OS grid coordinates.

It lets contractors excavate safely, lets designers plan connections and foundations around what is there, and shows the client has met the pre-construction checks most principal contractors and local authorities expect.

Why it matters

  • Safety. Knowing where live cables and gas mains run prevents strikes that put workers and the public at risk.
  • Cost and programme. A service strike means repairs, delays and disputes. Finding services first lets you plan around them.
  • Compliance. A PAS 128 survey records how each service was detected and how reliable the data is, which is what clients and contractors increasingly ask for.

PAS 128

PAS 128 is the UK specification for detecting, verifying and locating underground utilities. It sets out how surveys are carried out and how confident you can be in each line on the drawing, so results are consistent from one project to the next. We survey to Quality Level B as standard.

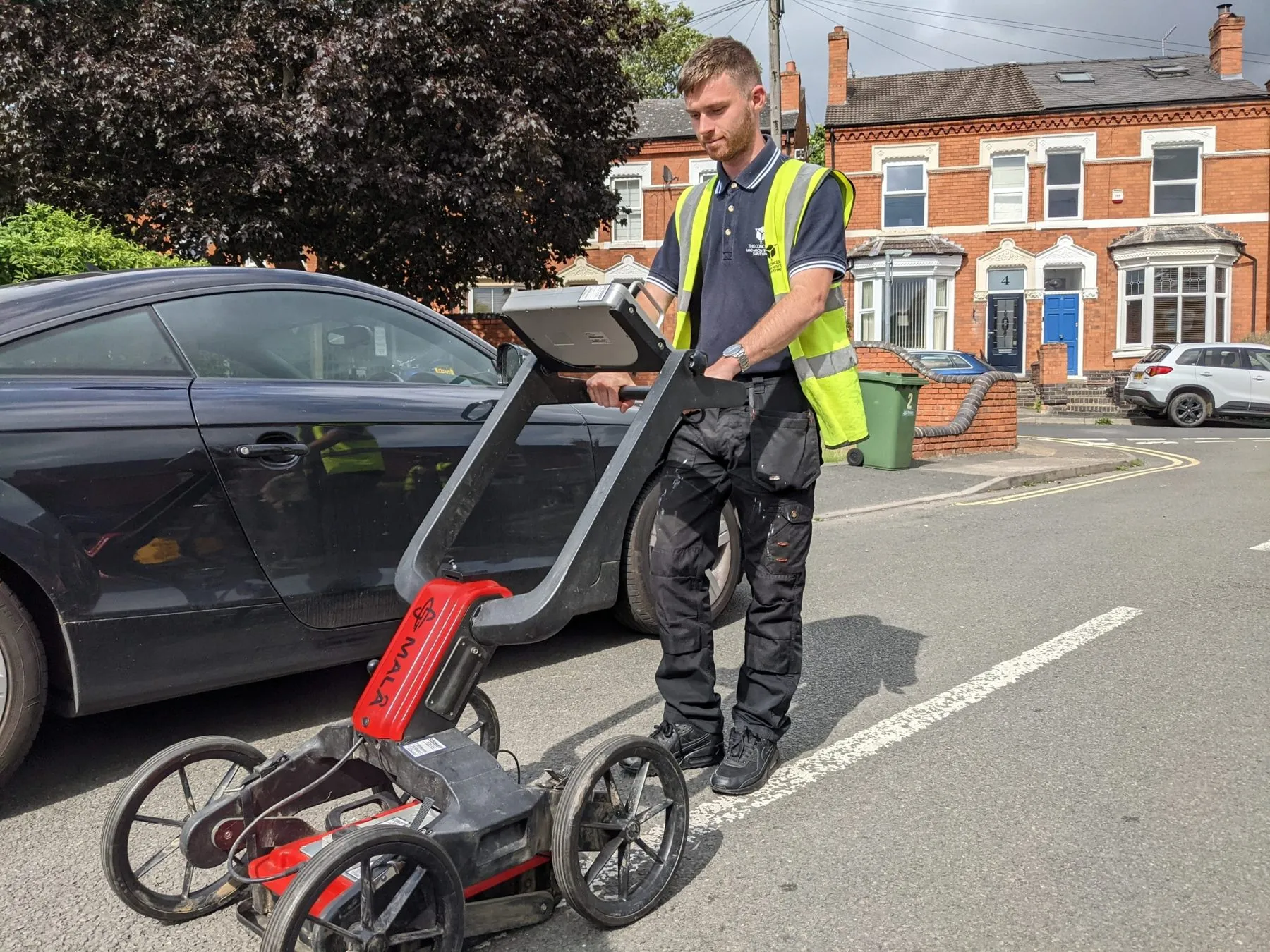

Technician pushing a ground-penetrating radar unit along a residential street

The four quality levels

PAS 128 grades every survey, and every line on the drawing, by quality level:

  • Quality Level D, desktop search. Existing records from the utility companies. Useful for planning, but records are often incomplete or out of date.
  • Quality Level C, site reconnaissance. Visible evidence on site, such as covers, valves and marker posts, compared with the records.
  • Quality Level B, detection. Services traced with EML and GPR and mapped to a known accuracy. This is our standard survey and what most design and construction projects need.
  • Quality Level A, verification. Services exposed with trial holes or vacuum excavation to confirm position, depth and type.

If you are not sure which to ask for, tell us what the survey is for. For foundations, drainage and new connections, Quality Level B is usually right, with Level A trial holes added where the design depends on an exact depth.

GPR and EML together

Electromagnetic location finds metallic pipes and cables, either by picking up the signal a live cable already carries or by putting a signal onto the service. It cannot find plastic pipes or clay drains. Ground-penetrating radar sends pulses into the ground and records reflections from buried objects, so it can find non-metallic services too, but its depth and clarity depend on the ground: clay and wet soils reduce it. Using both, and lifting drainage covers to record pipe runs and invert levels, gives the most complete picture of what is under the site.

Utility survey drawing with colour-coded services across a site

What the drawing shows

Each service is drawn in its own colour and layer, with its type, the detection method, the quality level and, where it can be measured, its depth. Drainage runs show cover and invert levels and pipe sizes. Everything is on OS grid coordinates, so the utility survey sits directly over a topographical survey of the same site, and the two are often commissioned together. Contractors can use the drawing alongside their own pre-dig checks, and designers can route drainage and new connections around what is already there.

How it works

  1. Quote

    Send the site location, the area to survey and the PAS 128 quality level you need. Every quote is priced to the site.

  2. Survey

    Technicians trace services with EML and GPR, lift covers to record drainage, and fix positions with GNSS.

  3. Drawings

    We usually attend within two weeks of booking, and drawings follow around a week after the survey.

Who we work with

  • Architects and engineers

    Know what is in the ground before you place foundations, drainage or new connections.

  • Principal contractors

    Pre-dig information to plan excavations safely and avoid service strikes.

  • Developers

    Service routes and constraints identified before they affect the layout or programme.

Recent projects

See all projects

Pilgrims Hatch, Essex

Crematorium and cemetery, Ongar Road

Buried services traced and mapped to PAS 128 at a working crematorium and cemetery, before construction started.

Utility surveys

Where we work

From our base in Leigh-on-Sea, Essex, we carry out utility surveys across London, Essex, Kent, Hertfordshire and the rest of the UK. Local pages:

★★★★★

We used THS Concepts for a topographical survey of a plot of land we're looking to develop with new houses. From the first contact they were easy to deal with and got the survey scheduled in quickly. …

Adam M

★★★★★

We booked a Topographical survey with THS. The response time was really quick and our job was booked in and carried out within a week. I received the results immediately. Really great service and competitive price wise compared to other quotes. …

Mark Maher

★★★★★

THS Concepts perform regular topographical surveys for my company (RJB Architect). The information they produce is exceptional, prices competitive and the team are all very helpful and personable. …

Richard BaileyRJB Architect

Utility surveys: common questions

What are the PAS 128 quality levels?

Level D is a desktop study of existing records. Level C adds a site reconnaissance of visible features such as covers and valves. Level B uses GPR and EML to detect and map services without digging, and is what most design and construction projects specify. Level A confirms position, depth and material by exposing the service, usually with trial holes or vacuum excavation.

What is the difference between GPR and EML?

Electromagnetic location traces conductive services such as metal pipes and live cables. Ground-penetrating radar detects conductive and non-conductive services, including plastic pipes, across a wider range of ground conditions. We use both, so coverage is complete.

What quality level do I need?

Most construction and design projects specify Quality Level B, a full geophysical detection survey. If your contractor needs depths confirmed before digging near critical services, Level A trial holes can be added.

How much does a utility survey cost?

Each quote is priced to the size and complexity of the site and the quality level required. Send us the location for a free, fixed quote.
