What planners and architects need

A planning application lives or dies on the accuracy of its existing information. Site plans, sections and street elevations all start from the topographical survey, and errors in levels or boundaries tend to surface at the worst time: during consultation, at appeal or on site.

What we capture

For planning we record spot levels and contours, building positions, fence lines, trees, hard and soft landscaping, access points and drainage. Where the scheme affects neighbours, we also pick up adjoining buildings, window positions and ridge and eaves heights, so overlooking, daylight and massing can be tested properly.

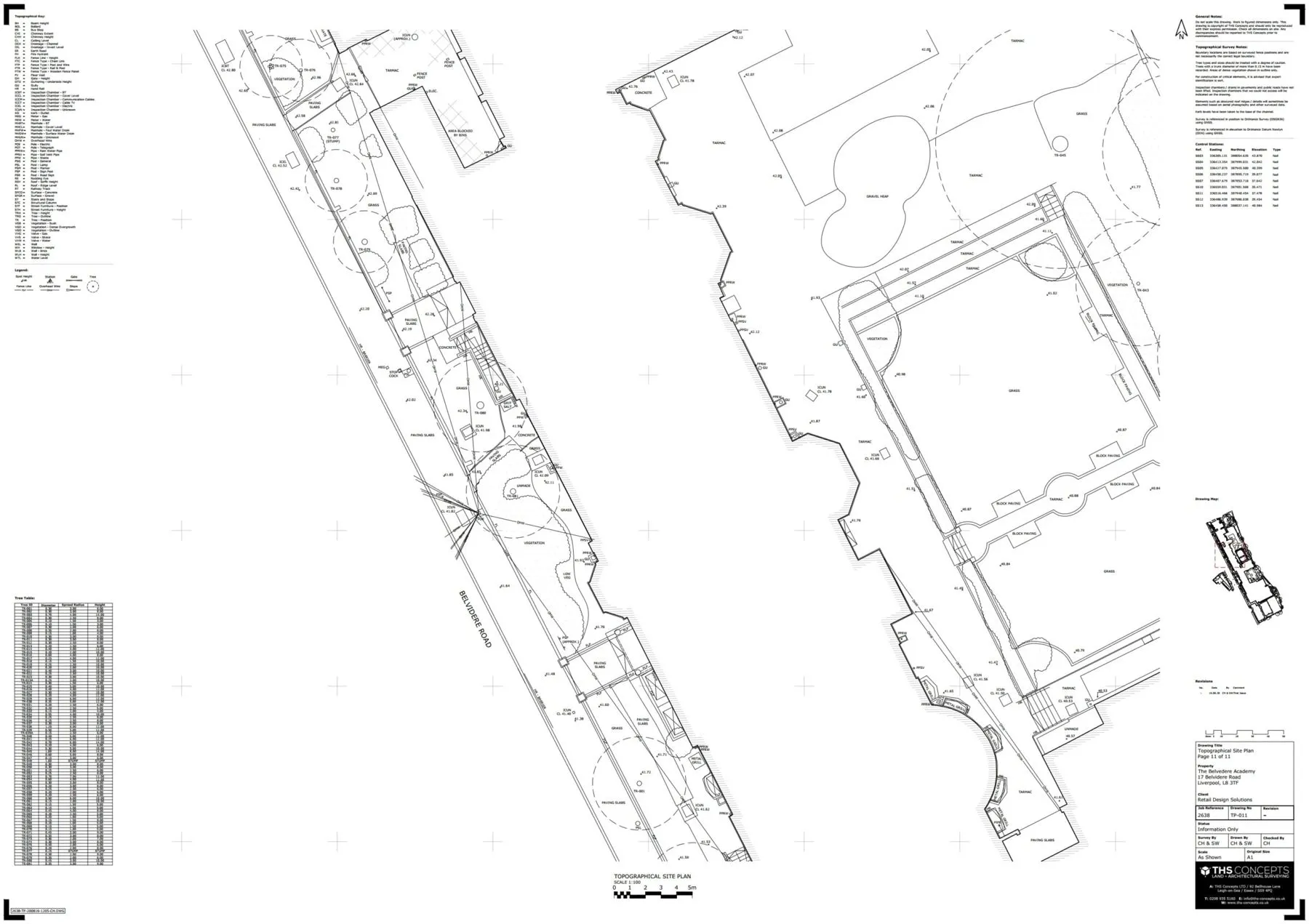

Detail from a topographical survey drawing showing levels, kerbs and features

Ready to design over

Every drawing is tied to the Ordnance Survey grid and layered cleanly in CAD. Your architect can drop it straight into the model, and the same survey control can be used later for setting out.

Trees, neighbours and levels

Three things cause most of the problems we see at planning stage. Trees: authorities expect tree positions, stem diameters and canopy spreads on the drawing so the arboriculturist can assess them against BS 5837 and plot each root protection area. Neighbours: window positions and ridge and eaves heights on adjoining buildings are what overlooking, daylight and massing arguments are built on. Levels: sections and street elevations drawn to estimated levels are the quickest way to lose a planning officer’s confidence. We capture all three as standard for planning work.

Topographical survey drawing of a long residential plot with buildings, trees and section markers

Drawings that often go with it

Many applications also need street scene elevations showing your building in context with its neighbours, and measured roof plans for loft and roof alterations. We capture these in the same visit from the same survey control. If the site is in flood zone 2 or 3, we can add the levels for a flood risk assessment at the same time, and an underground utility survey if new connections or foundations are planned near existing services.

Cost and timescale

Topographical surveys for planning start from £600 + VAT for a single residential plot. Most residential sites are surveyed in one visit, with drawings 5 to 10 working days later, so build that into the programme before your submission date. Our topographical survey cost guide explains what moves the price.

How it works

  1. Agree the extent

    Mark up the site and anything beyond it the planning drawings need, such as neighbouring facades or the full road width.

  2. Survey

    We capture the site with GNSS and total stations in a single visit for most residential and small commercial sites.

  3. Drawings to your architect

    Layered DWG and PDF, at the right coordinates and levels, ready for site plans, sections and street elevations.

What it costs

Most planning surveys are for a single plot or a small site and are priced to the area and the detail needed. Send us a location plan for a fixed price.

Read our guide to topographical survey costs

Typical jobGuide price
Single residential plot or extensionFrom £600

Prices exclude VAT.

Who we work with

  • Architects

    A base drawing for site plans, sections and street elevations.

  • Planning consultants

    Accurate existing information to support the application and any appeal.

  • Developers

    Constraints identified before design fees are committed.
