Measured building surveys of existing buildings

Floor plans, elevations, sections and roof plans of existing buildings, drawn from laser scan and total station data. Used for extensions, refurbishments, fit-outs, floor area measurement and heritage records.

  • Residential drawings often in 3 to 7 working days
  • DWG and PDF as standard, Revit on request
  • Occupied and listed buildings surveyed routinely

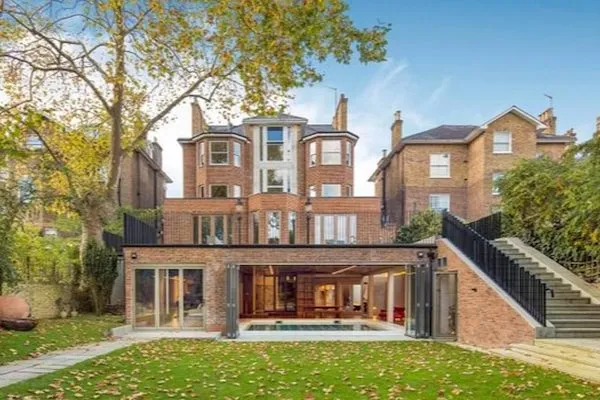

Rear of a large brick house in Holland Park with a glazed extension, surveyed by THS Concepts
  • TSA member

    The Survey Association

  • Over 4,000 surveys

    Surveying since 2013

  • Quotes in one working day

    Fixed price, confirmed timescales

  • Fully insured

    £1m PI, £5m public liability

Existing drawings for design and planning

A measured building survey records an existing building accurately enough to design from. It gives your architect, engineer or contractor the true layout and geometry of the building before any design work starts. Our guide What is a measured survey? explains the process in detail.

We carry out measured surveys of residential, commercial and specialist buildings, producing floor plans, elevations, sections, roof plans and as-built drawings, typically in DWG and PDF, with E57 point clouds and Revit models where needed.

Depending on the building, we capture it with 3D laser scanners, total stations and conventional measurement. Laser scanning is our default on most jobs because it records every surface on the first visit, which means fewer return trips when the design develops.

When you need one

Most measured surveys are commissioned for one of these reasons:

  • Planning and building control. Accurate existing drawings reduce design errors and avoid re-submissions.
  • Extensions and renovations. Your designer works from exact dimensions, so new work ties into the existing structure.
  • Floor areas. Measured drawings support valuations, leasing and GIA and NIA measurement, and NSA verification surveys on new-build apartment schemes.
  • Heritage and conservation. Listed building surveys recorded in detail before work starts, using non-contact measurement.
  • Fit-out and facilities management. Accurate records for space planning, refurbishment and asset management.

What a measured building survey includes

Every drawing in the package is produced from the same survey data, so the plans, elevations and sections agree with each other.

  • Floor plans. Every storey, with true wall thicknesses, openings, stairs, floor levels, ceiling heights and visible structure.
  • Elevations. External facades with openings, materials and roof lines with levels. Internal elevations for complex refurbishments and listed interiors.
  • Sections. Cut through the stair and main roof to show levels, heights and how the floors relate.
  • Roof plans. Roof shape, ridge and eaves levels, drainage and key features.
  • Reflected ceiling plans. Ceiling layouts for fit-out and interior design, common on commercial buildings.
  • Street scene elevations. Your building and its neighbours, often needed for planning.

Measured first floor plan of a large house with room names, levels and ceiling heights

A typical measured building survey of a house includes a floor plan of every storey, the external elevations and one or two sections. Our measured survey example drawings show what each drawing type looks like.

Scales and level of detail

Most measured surveys are drawn at 1:100 or 1:200, with 1:50 for complex or high-detail projects such as listed interiors or tight refurbishments. The scale sets how much detail is drawn: at 1:50 we show items such as skirtings, architraves and individual steps that would be clutter at 1:200. Tell us what the drawings are for and we will agree the scale and detail at quote stage, so you are not paying for detail you will never use.

Measured survey or 3D laser scan?

Both can produce plans and elevations. A measured survey is the right service when you need traditional architectural drawings and nothing more. If you also need a registered point cloud, a Revit model or clash detection, start with 3D laser scanning instead.

Measured building survey or topographical survey?

The two are often confused and often ordered together. A measured building survey records the building: its floor plans, elevations, sections and roof. A topographical survey records the land around it: levels, boundaries, trees, drainage and hard surfaces. An extension or new-build scheme usually needs both, and we capture them on the same survey control so the building and site drawings line up.

What affects the price

A measured survey is priced on the work involved: the size of the property and number of floors, which drawings you need, the level of detail, how easy the building is to get around, and whether roof spaces, basements or restricted areas are included. Point cloud or Revit outputs add to the scope. Our measured survey cost guide gives example prices by house size.

What to send us for a quote

The property address and type, the drawings you need, any access restrictions and your timescale. If your architect has given you a brief, a mark-up or an example drawing, send that too. Our quote sets out the survey scope, the drawings and the cost, so you know what is included before work starts.

Who does the work

Our in-house team handles both site capture and drawing production, so the people who measured your building are the people who draft it. We have been carrying out measured building surveys since 2013, and we are members of The Survey Association. Drawings for a typical house often follow 3 to 7 working days after the final site visit, depending on scope and complexity.

Areas we cover

Most of our measured building surveys are in London and Essex, with regular work in Kent, Hertfordshire, Sussex, Surrey and Buckinghamshire. We also work across the rest of the UK and internationally.

Types of measured building surveys

  • Floor plans

    Accurate floor plans of existing buildings, showing walls, openings, stairs, floor levels and visible structure, drawn in layered DWG and PDF for design and coordination.

  • Elevation surveys

    External and internal elevations and sections of existing buildings, drawn from laser scan data so every opening, cornice and level is in the right place.

  • Roof plans

    Accurate existing roof plans showing ridges, valleys, eaves, pitches and levels, captured from the ground with a 3D laser scanner or from the air with a survey drone, and drawn in DWG and PDF.

  • Street scene elevations

    Accurate street scene elevations showing your building alongside its neighbours, with ridge, eaves and ground levels, so planners can see exactly how a proposal fits the street.

  • Area measurement (NIA, GIA)

    Gross and net internal areas measured to the RICS Code of Measuring Practice or IPMS, with area schedules and marked-up plans for valuation, leasing, rating and sales.

  • Net sales area surveys

    As-built net sales areas for new-build apartment schemes, measured by 3D laser scan and compared unit by unit with your design schedule, so commercial teams can value and report with confidence.

  • Listed building surveys

    Detailed, non-contact measured surveys of listed and historic buildings, capturing irregular walls, mouldings and fabric for listed building consent, repair and conservation work.

How it works

  1. Scope and quote

    Send the address, the drawings you need and your deadline. If your architect has a brief or mark-up, send that too. We reply with a fixed quote.

  2. Survey on site

    We capture the building with the right mix of 3D laser scanning, total station observations and hand checks, and take photographs and notes to support drafting.

  3. Processing and checks

    Scan data is registered and checked for coverage and alignment before drafting starts, so the drawings rest on reviewed information.

  4. Drawings issued

    You receive the agreed package in DWG and PDF, with point cloud or model files where ordered. We will walk your team through anything that needs clarifying.

What it costs

Measured building surveys start from about £600 + VAT for a smaller home. The price then depends on the size of the property, the drawings required, the level of detail, access and whether point cloud or BIM outputs are needed.

Read our measured survey cost guide

Typical jobGuide price
Smaller residential propertyFrom £600
Larger, complex or commercial buildingsQuoted to scope

Prices exclude VAT.

Who we work with

  • Homeowners

    Accurate plans, elevations and sections for an extension, refurbishment or planning application.

  • Architects and designers

    Reliable existing information for concept, planning and technical design.

  • Developers

    Existing building data to assess, plan and coordinate redevelopment across the project team.

  • Commercial and fit-out teams

    Offices, retail units and other commercial space surveyed for fit-out and reconfiguration.

  • Heritage and conservation projects

    Listed and historic buildings recorded before repair, restoration or alteration.

  • Consultants and property professionals

    Engineers, project managers and asset teams who need dependable as-built information.

Where we work

We carry out measured building surveys across the UK from our office in Leigh-on-Sea, Essex. Local pages:

★★★★★

I had an excellent experience with the measured building survey conducted by THS Concept team. They were recommended to us by our building surveyors, and can now confidently recommend them myself. …

Maylis Pajot

★★★★★

THS provided an excellent service creating a measured survey of a very complex building in central London. The process was smooth, communication was excellent throughout, and the results were impeccable. …

Christopher Hildrey

★★★★★

THS Concepts assisted me for a measured survey for a flat in London and provided an excellent service. Communication and planning couldn’t be smoother, and delivery went without a hitch.

Romain Murat

Measured building surveys: common questions

What is a measured building survey?

A survey of an existing building that produces accurate drawings to design from. Our guide What is a measured survey? explains it in detail.

What is the difference between a measured survey and an as-built survey?

The terms overlap. As-built usually describes a record of what has actually been built, often after construction or alteration. See our as-built survey guide.

Can you survey an occupied or furnished property?

Yes, we do it regularly. Furniture and access can limit detail in some areas, so mention any restrictions when you ask for a quote.

What do you need from me to quote?

The property address, building type, the drawings you need, any access constraints and your timescale. An architect's brief or mark-up helps.

What drawings can a measured building survey include?

Floor plans, external and internal elevations, sections, roof plans and reflected ceiling plans, with point cloud data and Revit models where the project needs them. Our measured survey example drawings show each type.

How much does a measured building survey cost?

From about £600 + VAT for a smaller home. The price depends on the size of the property, the drawings required, the level of detail and access. See our measured survey cost guide for worked examples.

Can I measure a building myself?

For simple projects some people take their own measurements. A professional measured survey is usually needed where accuracy, scaled drawings or reliable existing information matter. Our guide on how to measure a building explains the manual approach.

What areas do you cover?

Mostly London, Essex, Kent, Hertfordshire, Sussex, Surrey and Buckinghamshire. We also work across the rest of the UK and internationally.
