Elevation and section surveys
External and internal elevations and sections of existing buildings, drawn from laser scan data so every opening, cornice and level is in the right place.

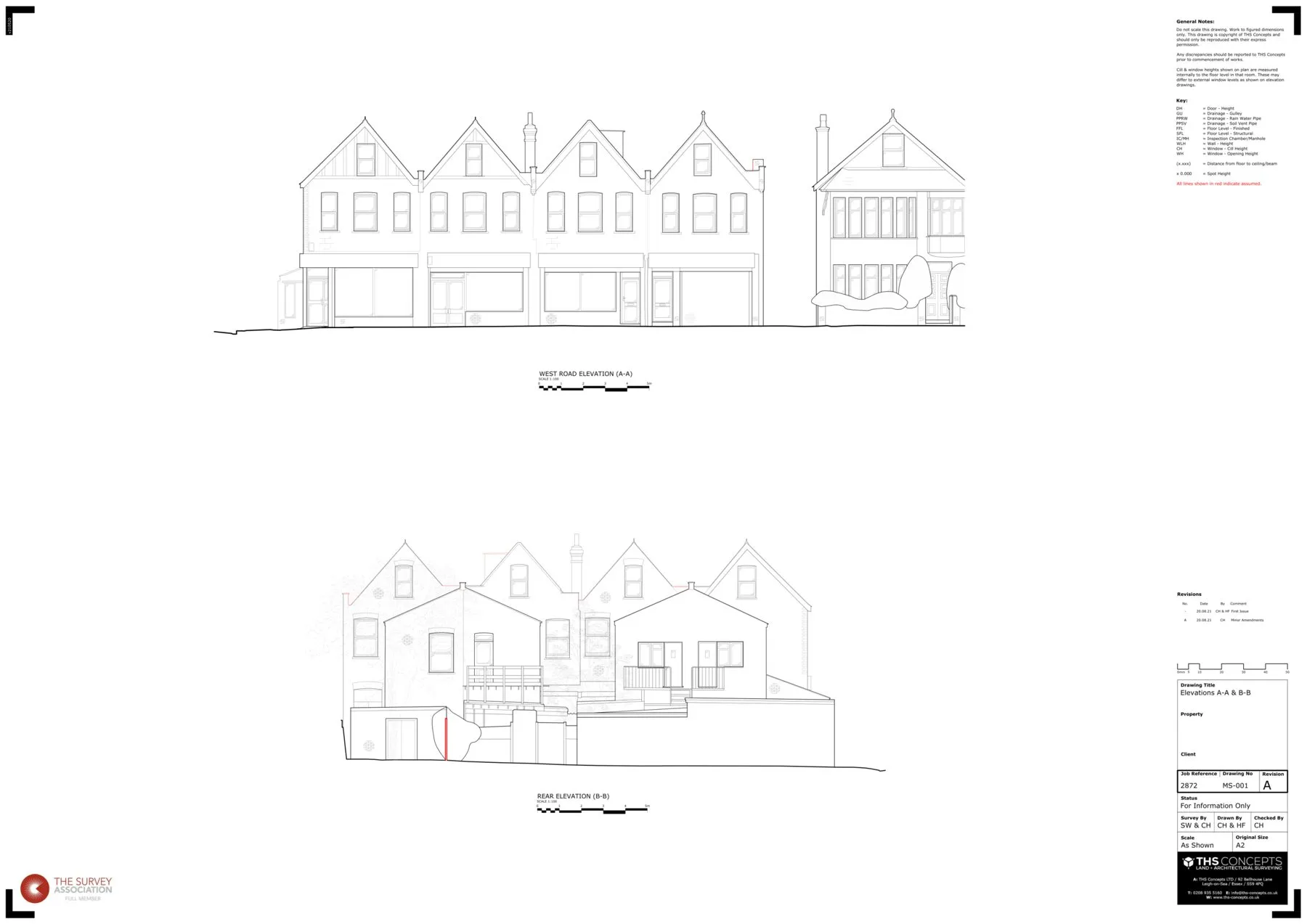

What elevation surveys show
Elevations record the faces of a building: openings, cills, heads, string courses, materials and roof lines, with levels on each storey. Sections cut through the building to show floor zones, ceiling heights, stairs and roof structure. Together with floor plans, they give the design team a complete existing record. If the planners want to see your building alongside its neighbours, you need street scene elevations instead.

Laser scanned, not estimated
Measuring a three-storey facade with tapes and a laser measure means estimating what you cannot reach. Laser scanning captures every visible surface from the ground in minutes, so the drawn elevation matches the building, including the details that make listed and period buildings difficult.

Roofs and upper storeys
Elevations are captured with 3D laser scanners or drones. Roof slopes and rear elevations hidden from the street are flown and merged with the ground scan, so nothing is guessed. The same survey gives you an existing roof plan and, for planning, a street scene elevation including the neighbouring buildings.
Scales and detail
Elevations and sections are usually drawn at 1:100, or at 1:50 where the design needs high detail, such as facade alterations or listed and historic buildings. At 1:50 we can show brick courses, stone dressings, window glazing bars and cornice profiles. At 1:100 we show openings, cills and heads, materials and the main roof lines. Each elevation carries levels at floors, cills, eaves and ridge, tied to the same datum as the floor plans.

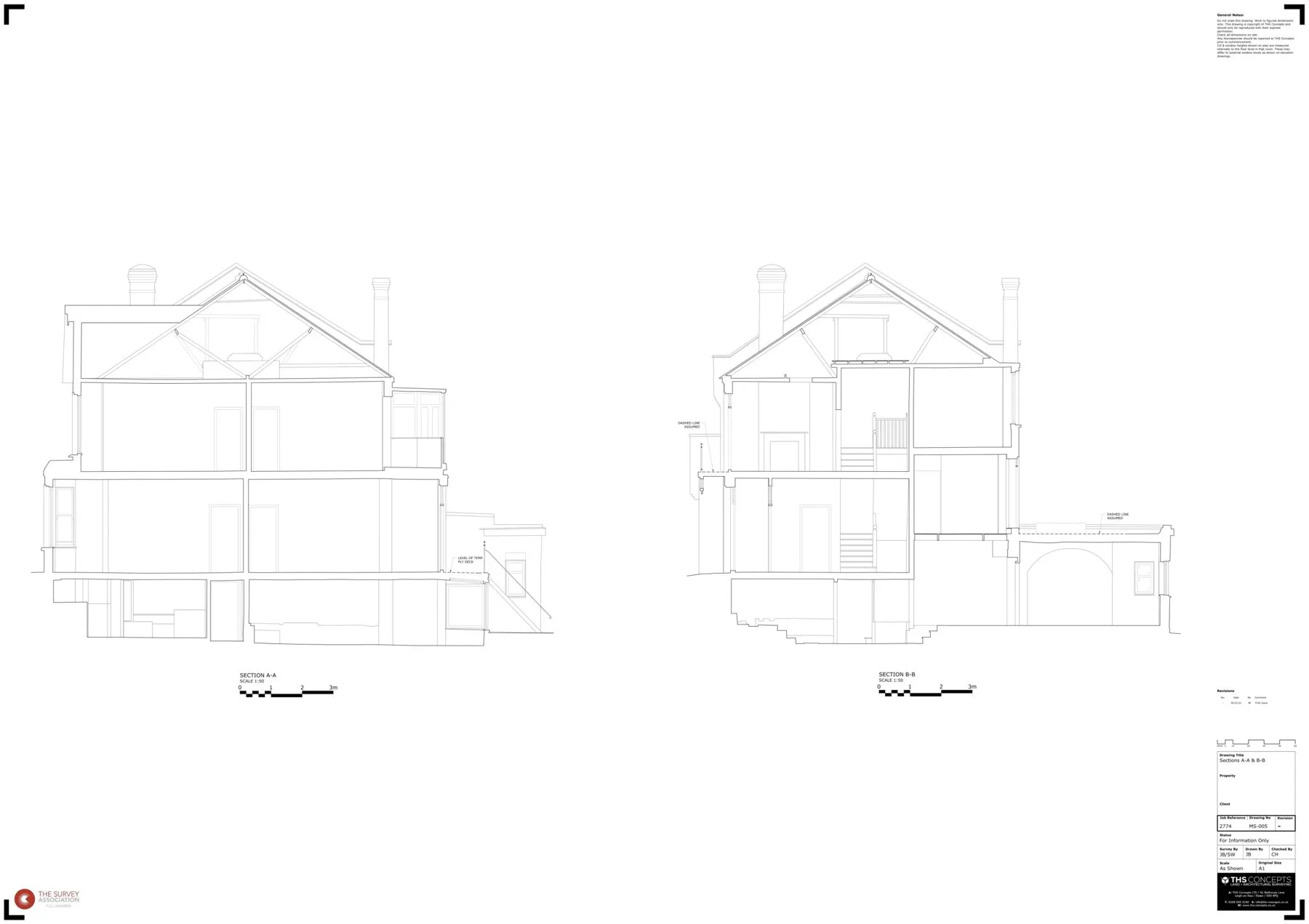

Sections that answer design questions
A section is only useful if it cuts through the right place. We usually take one through the main stair and one through the main roof at right angles to it, plus any change in floor level, but the best positions depend on the design. Mark the lines on a plan, or tell us what the section needs to show, such as a floor zone for new services or the head height for a loft conversion, and we will place them to answer it.
How it works
Scope
Agree which elevations and section lines you need and the level of detail.
Survey
Facades, interiors and roofs are captured with 3D laser scanners or drones, depending on the building.
Draft and check
Elevations and sections are drafted from the point cloud and checked before issue.
Who we work with
Architects
Elevations for planning drawings, facade alterations and loft conversions.
Structural engineers
Sections showing floor zones, roof structure and levels.
Conservation specialists
Detailed records of historic facades and interiors.
Where we work
From our base in Leigh-on-Sea, Essex, we carry out elevation surveys across London, Essex, Kent, Hertfordshire and the rest of the UK. Local pages:
What clients say
Read all 90+ reviews on Google★★★★★
I had an excellent experience with the measured building survey conducted by THS Concept team. They were recommended to us by our building surveyors, and can now confidently recommend them myself. …
★★★★★
THS provided an excellent service creating a measured survey of a very complex building in central London. The process was smooth, communication was excellent throughout, and the results were impeccable. …
★★★★★
THS Concepts assisted me for a measured survey for a flat in London and provided an excellent service. Communication and planning couldn’t be smoother, and delivery went without a hitch.
Elevation surveys: common questions
How do you survey high facades and roofs?
Facades are laser scanned from the ground, which captures detail several storeys up. For roofs and upper elevations hidden from the street, we add drone capture.
Where should section lines go?
Usually through the stair, the main roof and any change in floor level. Your architect can mark them on the plan, or we will suggest positions.
Can you include neighbouring buildings?
Yes. For planning applications we draw street scene elevations showing your building alongside its neighbours.
Can you draw elevations without access to the upper floors?
Usually, yes. External elevations are scanned from the ground and the garden, so we only need inside access for internal elevations and sections. Where a rear or side elevation cannot be seen from anywhere we can stand, we add drone capture.
