Measured floor plans
Accurate floor plans of existing buildings, showing walls, openings, stairs, floor levels and visible structure, drawn in layered DWG and PDF for design and coordination.
What measured floor plans show

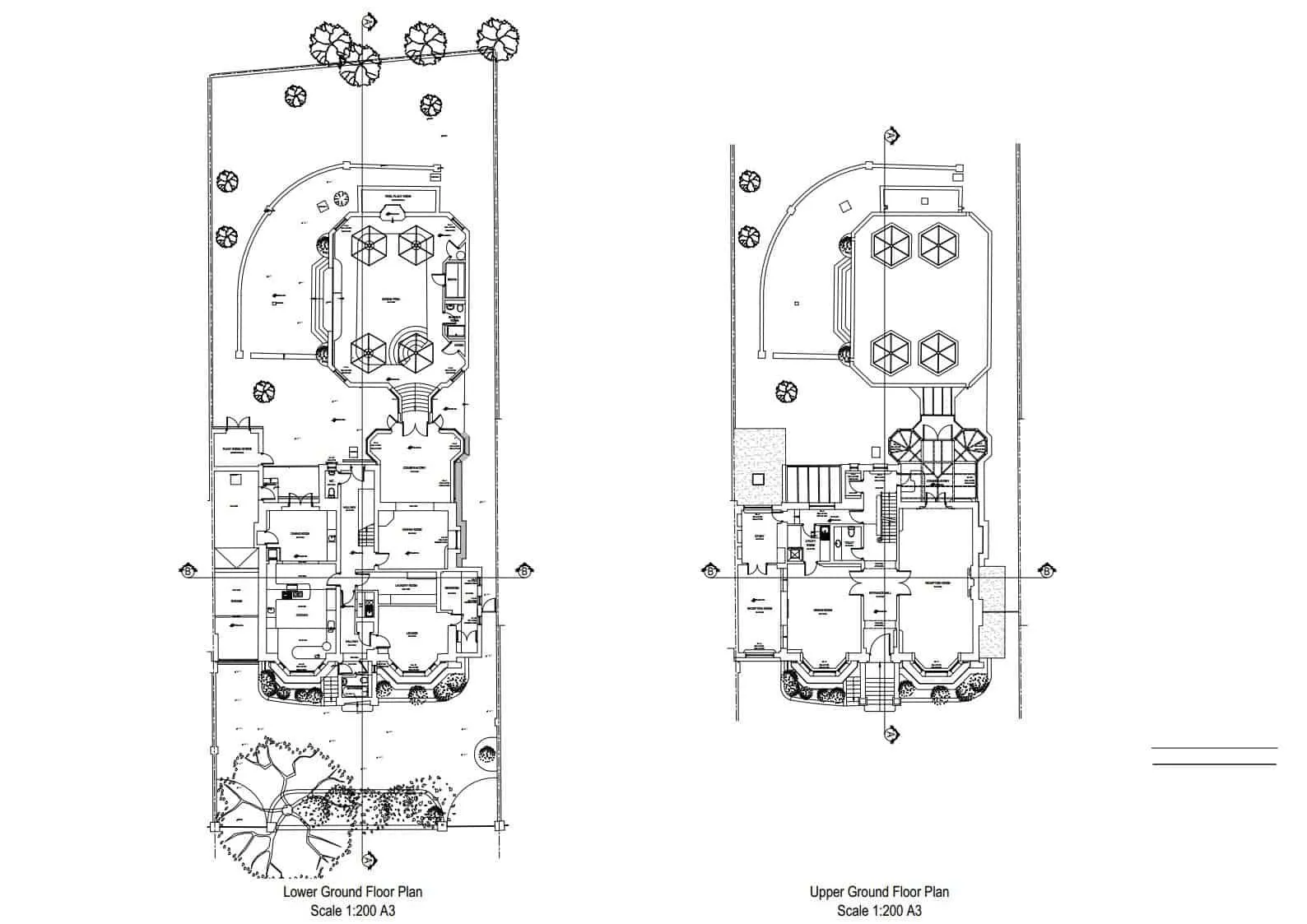

A measured floor plan records each storey of an existing building as it really is: true wall thicknesses, openings, stairs, floor levels, visible structure and fixed fittings. It is the starting drawing for almost every refurbishment, extension and fit-out.

Captured once, drawn accurately
Most of our measured surveys are captured with 3D laser scanners as well as total stations, so the whole building is recorded on the first visit. That means fewer return trips when the design develops, and the option to add elevations, sections or a BIM model later from the same data.
Drawn to your standard
Plans are layered and dimensioned to our standard or to your office template, issued in DWG and PDF, and checked against site photographs before they leave us.
Typical uses
Measured floor plans are ordered for extensions and loft conversions, internal refurbishments, office and retail fit-outs, fire strategy and evacuation plans, space planning and asset records. They are also the base for floor areas: the same survey can give GIA and NIA floor area schedules without a second visit.

Old drawings or a new survey?
Original drawings, estate agent plans and old planning drawings are a useful start, but they rarely match what was built or what has changed since. Walls move, openings are blocked up and chimney breasts are removed. If you are not sure whether drawings already exist, our guide to finding floor plans for a property explains where to look. If you need to design from them, a measured survey is the safer starting point.
How it works
Scope
Agree the floors, the level of detail and any layer standard or title block you want us to use.
Survey
We capture the building with laser scanning and total stations, plus hand checks where needed.
Draft and check
Plans are drafted from the registered data and checked against site photos before issue.
What it costs
Floor plans are priced to the size of the building, the number of storeys and the detail needed. Most houses and flats are a single visit.
| Typical job | Guide price |
|---|---|
| Floor plans of a smaller residential property | From £600 |
| Larger, complex or commercial buildings | Quoted to scope |
Prices exclude VAT.
Who we work with
Architects and designers
Existing plans to design extensions, refurbishments and fit-outs from.
Contractors
Reliable dimensions for pricing, planning and procurement.
Property and facilities teams
Up-to-date plans for space planning and asset records.
Where we work
From our base in Leigh-on-Sea, Essex, we carry out floor plans across London, Essex, Kent, Hertfordshire and the rest of the UK. Local pages:
What clients say
Read all 90+ reviews on Google★★★★★
I had an excellent experience with the measured building survey conducted by THS Concept team. They were recommended to us by our building surveyors, and can now confidently recommend them myself. …
★★★★★
THS provided an excellent service creating a measured survey of a very complex building in central London. The process was smooth, communication was excellent throughout, and the results were impeccable. …
★★★★★
THS Concepts assisted me for a measured survey for a flat in London and provided an excellent service. Communication and planning couldn’t be smoother, and delivery went without a hitch.
Floor plans: common questions
How accurate are measured floor plans?
Plans are drawn from laser scan and total station data, so overall dimensions and wall positions are accurate to a few millimetres. Drawings are usually issued at 1:100 or 1:200, or at 1:50 for complex projects where high detail is specified.
Can you work to our CAD standard?
Yes. Send your layer standard, title block or an example drawing, and we will produce the plans to match.
Can you include elevations and sections too?
Yes. Most projects order plans with elevations and sections from the same survey.
