Measuring vertical movement precisely

Where settlement or subsidence is the main risk, precise levelling is the most accurate way to measure it. Our guide on how to monitor building settlement explains the method. We fix levelling points to the structure and read them with digital levels and invar staves from benchmarks set well outside the zone of influence, giving vertical movement to about ±0.5mm.

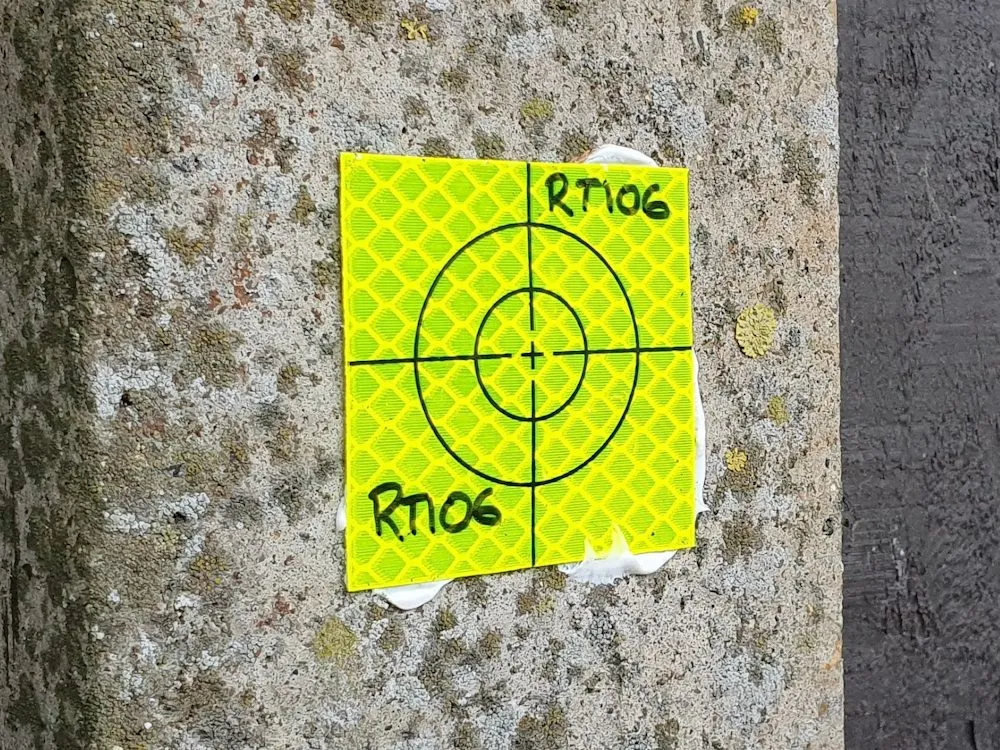

Reflective monitoring target fixed to a concrete wall

Where it is used

  • Buildings and structures above or beside running tunnels
  • Properties next to deep excavations and basements
  • Ground affected by dewatering or piling
  • Structures on soft or shrinkable ground

Settlement and subsidence monitoring for homes

For houses on shrinkable clay, near trees or showing signs of subsidence, levelling points read every month or two over a full year show whether the building is still moving and whether the movement follows the seasons. Insurers and engineers use that record to decide between monitoring, tree work and underpinning. Level monitoring is often combined with crack monitoring on the same visit.

Monitoring results table showing the movement of each point against its baseline, with readings over trigger highlighted

Reporting

Every visit produces a report within 24 hours, with movement shown against the previous reading and the original baseline. If a trigger is breached, the named contacts are told the same day. Our guide on how to monitor building settlement explains the method in more detail.

How it works

  1. Install

    Levelling points are fixed to walls, columns or ground, with benchmarks set well outside the works.

  2. Baseline

    Two independent levelling runs establish the starting position.

  3. Monitor and report

    Points are re-levelled at the agreed frequency and movement reported within 24 hours.

What it costs

Settlement monitoring is a setup and baseline, then levelling visits at the agreed frequency, each with a report.

Read our guide to structural monitoring costs

Typical jobGuide price
Setup, including baseline readings£600 to £1,200
Each monitoring visit, including the report£200 to £400

Prices exclude VAT. Larger commercial and infrastructure schemes are quoted to the specification.

Who we work with

  • Structural engineers

    Precise vertical data where settlement is the main risk.

  • Contractors

    Evidence through excavation, dewatering and piling.

  • Asset owners

    Long-term settlement records over tunnels and on soft ground.

Where we work

From our base in Leigh-on-Sea, Essex, we carry out settlement monitoring across London, Essex, Kent, Hertfordshire and the rest of the UK. Local pages:

★★★★★

We have used THS Concepts for multiple surveys from topographic to drone photogrametry, they are professional and prompt and deliver exactly what is requested. Highly recommended.

David HopperMarmus

★★★★★

We was looking for a local company to survey our setting out on our new build project and came across THS, We are VERY happy with the service they provided, Tom visited the site and was very helpful and professional. providing a detailed description and was very thorough. we will defiantly be using THS in the near future.

David EnglandGranite Design & Build

★★★★★

I contacted Tom to carry out a Topographic survey, and cannot recommend them enough. Nothing was to much, and I was kept up to date with everything as it happened! Great company to deal with and reasonably priced.

Billy BuckleyHomeowner

Settlement monitoring: common questions

When is precise levelling better than total station monitoring?

When vertical movement is the main concern, for example over running tunnels, near large excavations or on soft ground. Levelling gives about ±0.5mm vertically, tighter than optical 3D monitoring.

How often are readings taken?

It follows the works, weekly during heavy operations and less often as risk reduces. We agree the schedule with the engineer.

Can it be combined with other methods?

Yes. Settlement monitoring is often run alongside 3D prism monitoring and crack monitoring on the same site.
