Building setting out
Gridlines, footings, walls, columns, holding-down bolts and levels set out from your drawings with robotic total stations, so the building goes up where the design says it should.
Getting the building in the right place
Setting out turns the drawings into marks on the ground. Get the grid or a footing wrong and every trade that follows builds on the mistake. Our engineers set out from your drawings with robotic total stations and check the results before work continues.

From footings to frame

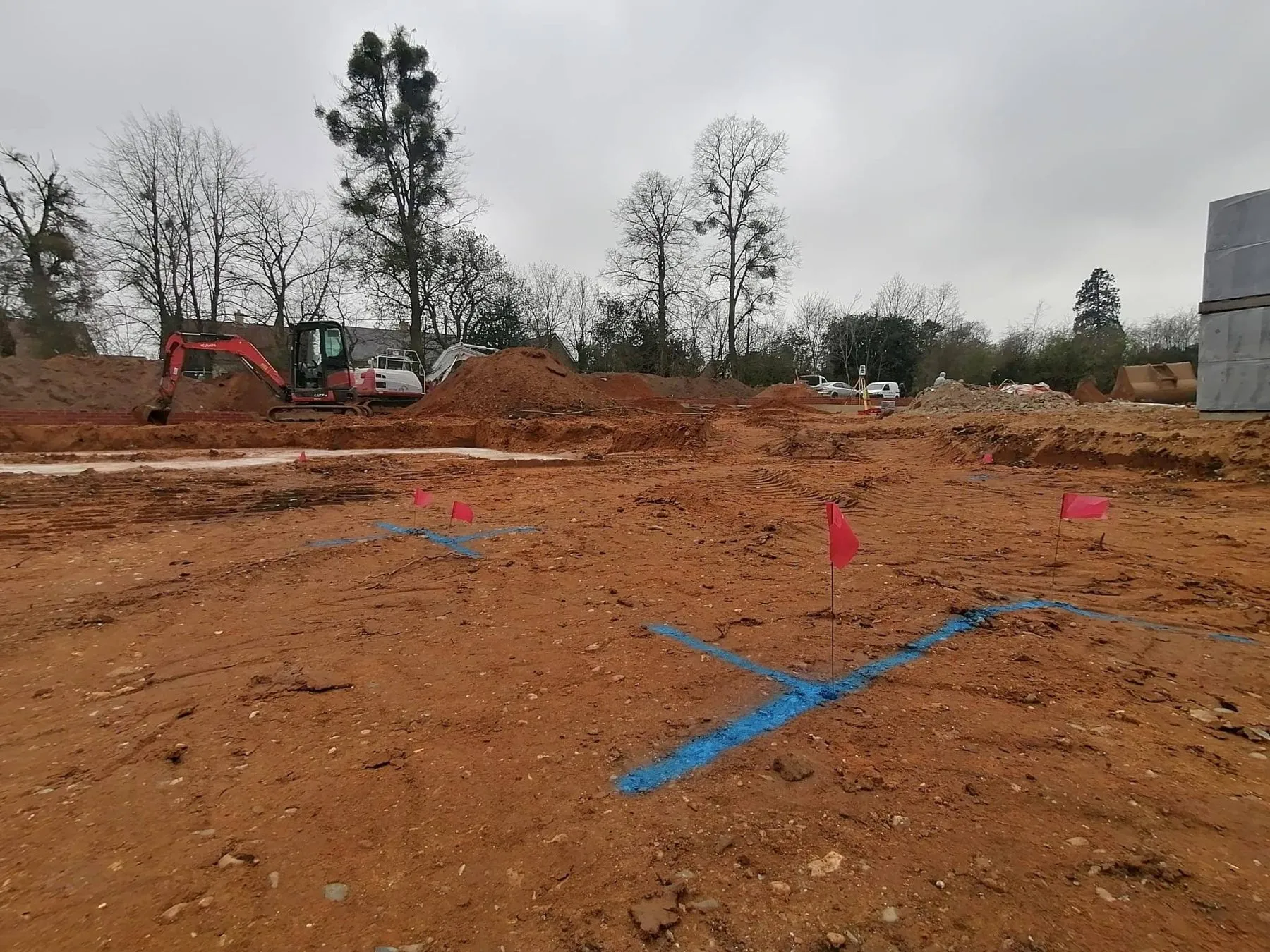

We set out structural gridlines with offset pegs, footings and ground beams, slab edges, walls and columns, holding-down bolts and finished floor levels. Pegs, flags and timber profiles are supplied free.
Checked and recorded
Before a pour or before steel arrives, we check what has been built against the design. If you need it, the checked positions are issued as an as-built drawing for your records. See as-built surveys for full laser scan verification.
What to have ready
The fastest days on site start with good information: setting out drawings in DWG on the site grid or with coordinates, the structural grid and dimensions, finished floor and formation levels, and a clear list of what needs marking that day. If we carried out the topographical survey, our survey stations are already on site and tied to the same grid. Our setting out client guide has a full checklist.
A typical day
A typical building setting out day starts by checking the site control, then marking the elements for the next stage of work: offset pegs for gridlines, footing and ground beam positions, slab edges, wall lines and levels on profiles or pegs. Before a pour, or before the steel arrives, we check holding-down bolts and formwork against the design so any problem is fixed while it is still cheap. Engineers are CSCS carded and work alongside your site manager and gangs.
How it works
Drawings and quote
Send the setting out drawings and what needs marking. We quote a fixed price or a day rate.
Control and set out
We establish control from the survey stations or site grid, then mark the agreed elements.
Check and record
Positions are checked before work continues, and an as-built record can be issued.
What it costs
Building setting out is usually booked by the day. A single building's footings or a set of gridlines can often be quoted at a fixed price.
| Typical job | Guide price |
|---|---|
| Site engineer with equipment, per day | £600 |
| Defined packages | Fixed price on request |
Prices exclude VAT. Pegs, flags and profiles are included.
Who we work with
Main contractors
Accurate grids and levels without a full-time site engineer.
Groundworkers
Footings and slabs marked out ready to dig and pour.
Steel and frame contractors
Bolt positions checked before the frame arrives.
Where we work
From our base in Leigh-on-Sea, Essex, we carry out building setting out across London, Essex, Kent, Hertfordshire and the rest of the UK.
What clients say
Read all 90+ reviews on Google★★★★★
We was looking for a local company to survey our setting out on our new build project and came across THS, We are VERY happy with the service they provided, Tom visited the site and was very helpful and professional. …
★★★★★
Excellent service, competitively priced and all completed as instructed. We now have a new allotment site in the London Borough of Redbridge with its plots professionally marked out. Thanks to Tom and the team.
★★★★★
THS Concepts provided Echo Construction Group with regular movement monitoring surveys which have been off great use during our basement excavation works and recommend them!
Building setting out: common questions
What do you need from us?
The setting out drawings in DWG with the site grid or coordinates, and a clear list of what needs marking. Access to the site control or the topographical survey stations helps.
Do you check our own setting out?
Yes. Independent checks of gridlines, bolts and levels before a pour or before steel arrives are a common request.
How quickly can you attend?
Our standard lead time is 3 to 7 days, and we can often help with urgent requests.
