Setting out engineers for piles, foundations and steelwork

Experienced site engineers who put piles, foundations, gridlines, bolts and levels exactly where the drawings say. Single-person robotic total stations, fixed prices or day rates, and markers supplied free.

  • Usually on site within 3 to 7 days
  • Robotic total stations, calibrated annually
  • Fixed price, day or half-day rates

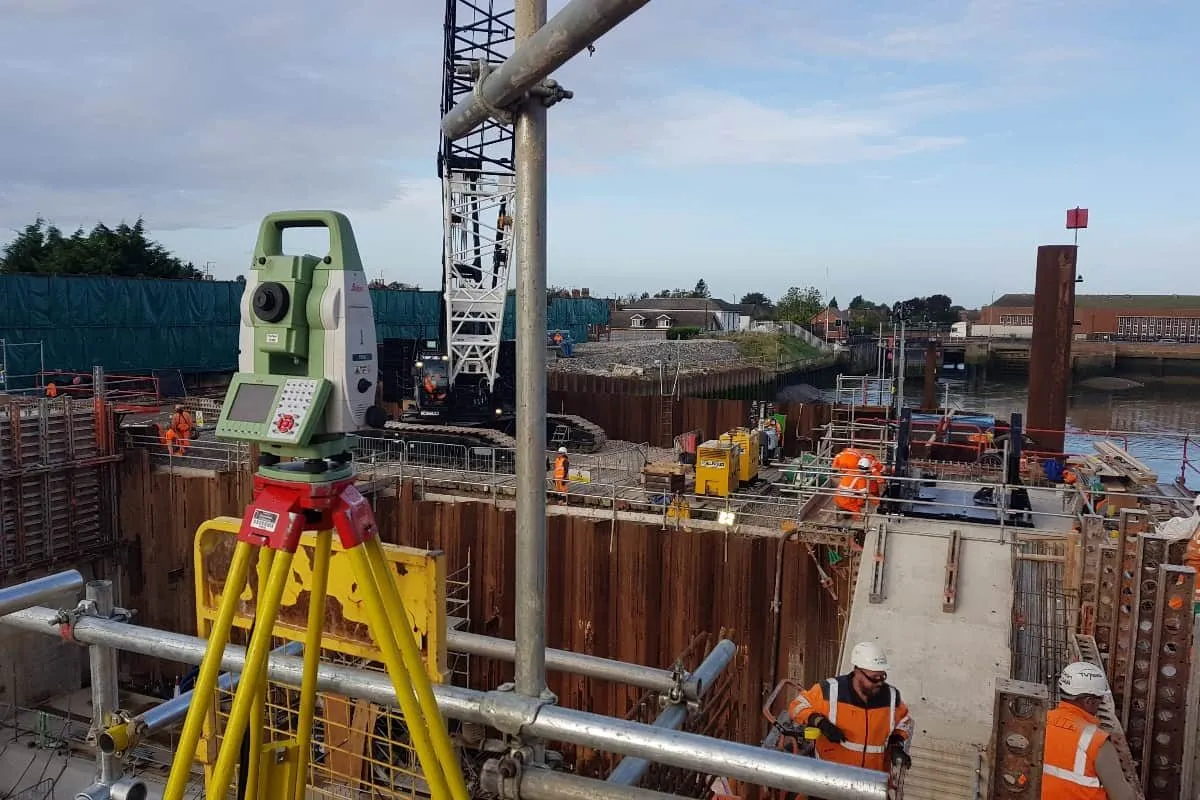

Total station setting out at the Boston flood barrier construction site
  • TSA member

    The Survey Association

  • Over 4,000 surveys

    Surveying since 2013

  • Quotes in one working day

    Fixed price, confirmed timescales

  • Fully insured

    £1m PI, £5m public liability

What setting out is

Setting out transfers the architect’s and engineer’s drawings onto the ground as physical markers, so every structure is built in the right place and at the right level. Our engineers use robotic total stations and GNSS to mark reference points and lines that guide the team placing foundations, piles, walls and steelwork.

Why use a professional setting out engineer

A mistake in setting out is cheap to prevent and very expensive to fix once concrete has been poured. A professional engineer with calibrated equipment reduces the risk of rework, keeps the following trades moving and gives you a record showing the work went in where the design said it should.

What we set out

  • Foundations and footings. So the base of the building is aligned and level. See building setting out.
  • Piles. Positions and cut-off levels for piling contractors. See piling setting out.
  • Gridlines, columns and steelwork. Including holding-down bolts.
  • Walls and brickwork. Lines and levels so walls go up straight and true.
  • Drainage, roads and utilities. Runs, inverts and levels for services and highways. See roads and drainage setting out.

Day rate or fixed price

Most setting out is booked on a day rate, typically £600 a day for an engineer with a robotic total station, GNSS and all pegs and markers. A day rate suits work that follows the programme, where the elements to be set out depend on how the site progresses. Where the scope is clear, such as a pile layout or the footings for a single building, we can quote a fixed price instead. For longer jobs and regular days each week, see site engineer hire.

What we need from you

Clear drawings and site control before the engineer arrives decide how much gets done in a day. Our setting out client guide lists everything to have ready.

Accuracy and checks

Robotic total stations, calibrated every year, set out positions to within a few millimetres of the coordinates on the drawing. Every engineer checks back to control at the start and end of each set-up, and positions that matter, such as gridlines and holding-down bolts, are checked independently before the next trade starts. Our total station accuracy calculator shows how angle and distance accuracy combine over different distances.

Where we have worked

From navigation towers in Liberia to a hospital helipad in Brighton and a flood barrier in Lincolnshire, our engineers have set out projects of every size. Most of our work is in London, Essex and Kent. If you have just commissioned a topographical survey from us, the control stations we left on site are ready for setting out.

Types of setting out

  • Building setting out

    Gridlines, footings, walls, columns, holding-down bolts and levels set out from your drawings with robotic total stations, so the building goes up where the design says it should.

  • Piling setting out

    Pile positions set out to tolerance ahead of the rig, then surveyed as built with cut-off levels and offsets reported, so the engineer can sign off pile caps with confidence.

  • Roads and drainage

    Kerb lines, road levels, drainage runs, manholes and invert levels set out from your design, with as-built drainage records when the work is complete.

  • Site engineer hire

    An experienced site engineer with their own robotic total station and GNSS, booked by the day or half day, for setting out, levels and checks whenever your programme needs one.

How it works

  1. Quote and booking

    Send the drawings and the elements you need setting out. We reply with a fixed price or a day or half-day rate, and our earliest date on site.

  2. On site

    Our engineer sets out foundations, piles, gridlines, walls, bolts and spot levels using a robotic total station or GNSS.

  3. As-built record

    If you need it, we process what was set out and issue a CAD and PDF as-built drawing for your records.

What it costs

Most setting out is booked on a day rate, which covers an experienced engineer and all equipment. Defined packages can be quoted at a fixed price.

Typical jobGuide price
Site engineer with equipment, per day£600

Prices exclude VAT.

Who we work with

  • Structural engineers

    Piles, foundations and steelwork placed to the design, with a record to prove it.

  • Main contractors

    A site engineer for the days you need one, without a full-time hire.

  • Groundworkers and builders

    Footings, drainage runs and levels set out correctly before the concrete goes in.

Recent projects

See all projects

★★★★★

We was looking for a local company to survey our setting out on our new build project and came across THS, We are VERY happy with the service they provided, Tom visited the site and was very helpful and professional. …

Granite Construction

★★★★★

Excellent service, competitively priced and all completed as instructed. We now have a new allotment site in the London Borough of Redbridge with its plots professionally marked out. Thanks to Tom and the team.

Francis Castro

★★★★★

THS Concepts provided Echo Construction Group with regular movement monitoring surveys which have been off great use during our basement excavation works and recommend them!

Trevor BeebyEcho Construction Group

Setting out: common questions

How much does setting out cost?

Setting out is usually charged at a day rate, typically £600 per day for an engineer with all equipment. Defined packages can be quoted at a fixed price.

How quickly can you get to site?

Our standard lead time is 3 to 7 days, and we can often help with last-minute requests. Call us if it is urgent.

What equipment do you use?

Robotic total stations and GNSS. The robotic instruments allow one engineer to work alone, and all equipment is calibrated every year.

Where do you work?

Mostly London, Essex and Kent, and across the UK. We have also set out projects in Europe and West Africa, including navigation towers at the Port of Monrovia.

Do you work on residential and commercial projects?

Yes, from single houses to large commercial and infrastructure schemes.

Tell us about your site

Send a location, a rough brief and your deadline. We reply with a fixed quote within one working day.

Call 020 8935 5160Get a quote
