Accurate data in congested spaces

Plant rooms and process plant are dense with pipework, ducts, steel and equipment. Measuring them by hand is slow, unsafe in places and prone to error, and errors in tie-in positions are expensive to fix once prefabricated work arrives on site. Laser scanning captures everything in one visit.

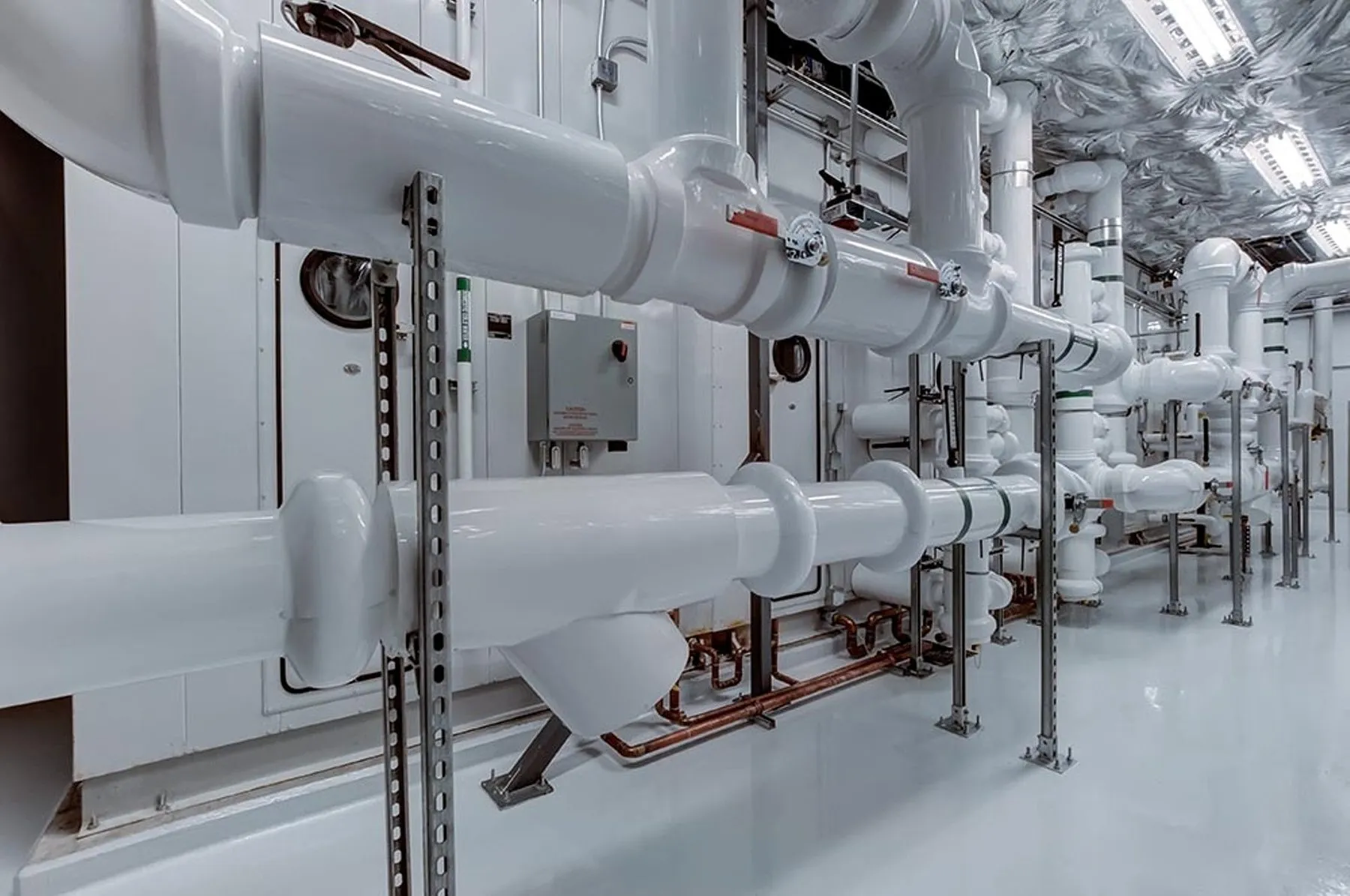

Laser scanned plant room with insulated pipework and valves

From scan to design

The registered point cloud can be used directly by your engineers, or we model the pipework, steelwork and equipment you need through our BIM modelling service, from LOD 100 to LOD 400. New designs can be checked against the scan before anything is fabricated.

Working in live plants

Industrial scanning is mostly about planning. Before we arrive we agree the areas, permits, inductions, PPE and any hot or restricted zones with the site’s operations team, and fit scanning around production, maintenance windows or shutdowns. The scanner is non-contact and Class 1 laser safe, and each scan position takes minutes, so most areas can be captured while the plant runs. Where an area can only be reached during a shutdown, we scan it first and leave the rest for normal operation.

What the data is used for

Engineers use plant scans to design tie-ins and replacement pipework, route new services through congested space, check that new equipment will fit through doors and between steel, and plan lifts and access. Contractors use them to prefabricate spools and steel off site with confidence that they will fit. A scan can be modelled to the level your engineers need, or delivered as a registered point cloud for them to measure from directly.

Experience on major sites

We spent two years providing scanning and setting out support at Bradwell nuclear power station, working within the site’s safety and security requirements.

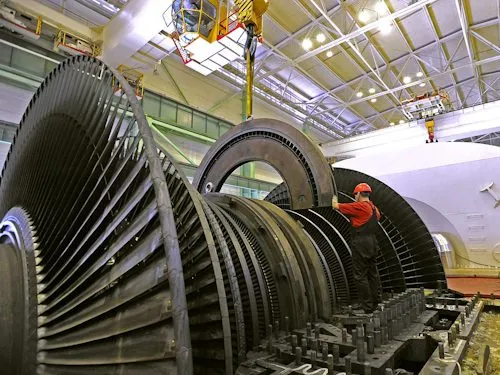

Turbine hall at Bradwell nuclear power station during decommissioning work We bring the same planning to factories, plant rooms and other live industrial environments.

How it works

  1. Scope and safety

    Agree areas, permits, inductions and working times with the site's operations team.

  2. Scan

    Dense scans capture pipework, steel and equipment from enough positions to see around congestion.

  3. Model and check

    We model the elements you need and check new designs against the existing plant.

Who we work with

  • MEP and process engineers

    Accurate geometry for tie-ins, replacements and new routes.

  • Main contractors

    Prefabrication that fits first time.

  • Plant and facilities managers

    Up-to-date records of complex assets.
