What an as-built survey is for

Buildings rarely end up exactly as drawn. An as-built survey records what was actually constructed, so deviations are spotted while they can still be fixed and the handover information matches the building the client is taking on. Our as-built survey guide explains when to commission one and what to ask for.

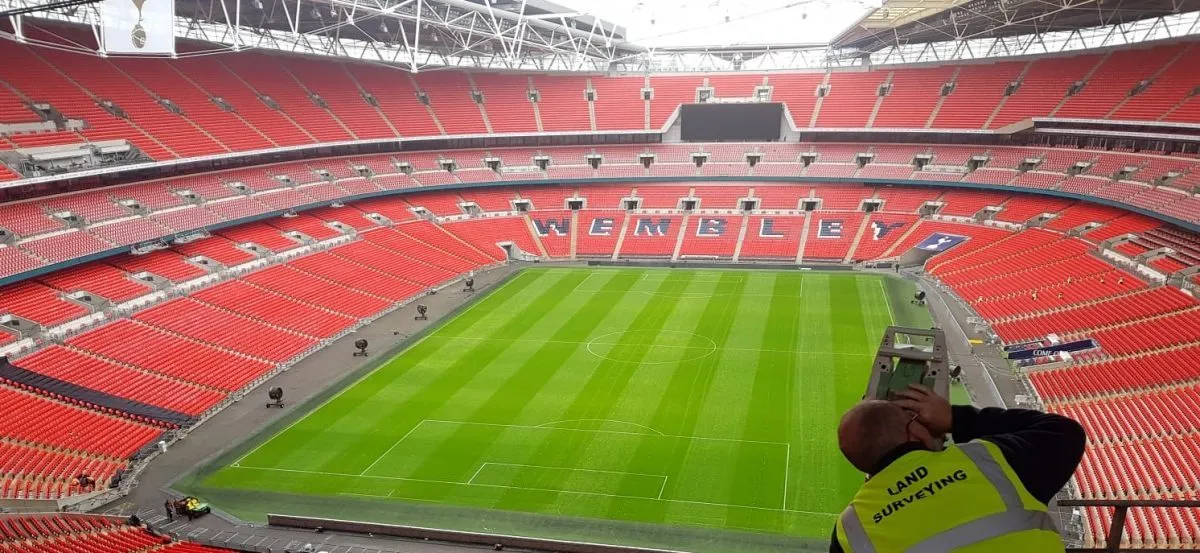

Surveyor recording as-built information inside Wembley Stadium

Verification during construction

Scanning at key stages, before ceilings close, before screeds go down, before cladding hides the frame, gives the contractor an accurate record and lets follow-on trades start with confidence. Comparing the scan with the design model shows deviations as colour maps that anyone on the team can read.

Deviation reporting is often combined with level monitoring, for example surveying warehouse and industrial floors for flatness before racking or machinery goes in.

Handover and facilities management

At completion, the scan data becomes as-built drawings or an updated BIM model that the facilities team can rely on for years.

Deviation reports

A deviation report compares the scan of what was built with the design model and colours every surface by how far it is from where it should be. Walls, slabs, columns and cladding within tolerance show in one colour, and anything outside it stands out immediately, with a schedule of the largest deviations and their positions. Tolerances are agreed before the scan, so the report answers the question the contractor or client actually has, such as whether a slab is flat enough for a raised floor or whether a steel frame is plumb enough for cladding to fit.

Other kinds of as-built survey

As-built is also used for other records. If you need positions of piles, foundations and gridlines checked against the setting out, see building setting out and piling setting out. For as-built drainage and external works, including cover and invert levels, see roads and drainage setting out.

How it works

  1. Agree the check

    Decide what to verify (structure, services, finishes) and the tolerances that matter.

  2. Scan

    We scan at the agreed stage, often before services are boxed in or slabs are covered.

  3. Compare and report

    The scan is compared with the design, and deviations are reported with clear visual outputs.

Who we work with

  • Main contractors

    Verification before follow-on trades start, and accurate handover records.

  • Clients and project managers

    Evidence that the building matches the design.

  • Facilities managers

    As-built drawings and models that reflect the finished building.

Where we work

From our base in Leigh-on-Sea, Essex, we carry out as-built surveys across London, Essex, Kent, Hertfordshire and the rest of the UK. Local pages:

★★★★★

THS Concepts provided Echo Construction Group with regular movement monitoring surveys which have been off great use during our basement excavation works and recommend them!

Trevor BeebyEcho Construction Group

★★★★★

THS Concepts has shown an excellent attitude and eagerness towards our ongoing project. I am thoroughly impressed by the level of service I have received and look forward to utilising their skills in the future.

Lauren ChapmanTim K Construction Ltd

★★★★★

We was looking for a local company to survey our setting out on our new build project and came across THS, We are VERY happy with the service they provided, Tom visited the site and was very helpful and professional. …

Granite Construction

As-built surveys: common questions

What is the difference between an as-built survey and a measured survey?

They overlap. A measured survey records an existing building for design. An as-built survey records new or altered work, often to check it against the design. Our as-built survey guide covers the differences.

When should the scan happen?

Before anything is hidden. Scanning services before ceilings close, or slabs before screeds, gives a permanent record of what is behind the finishes.

Can you compare against our Revit model?

Yes. We compare the scan with your model and report deviations as colour maps and schedules.
