THSP75 mini prism and target holder
A small tripod that holds a mini prism or the included reflective target over a survey nail, so you can backsight on your own without a robotic total station or a survey assistant.
The THSP75 sits the prism or reflective target much closer to the survey nail than a traditional tripod, which makes placement more precise and means you don’t need a tripod at all for backsights. It’s ideal for topographical surveys and setting out.

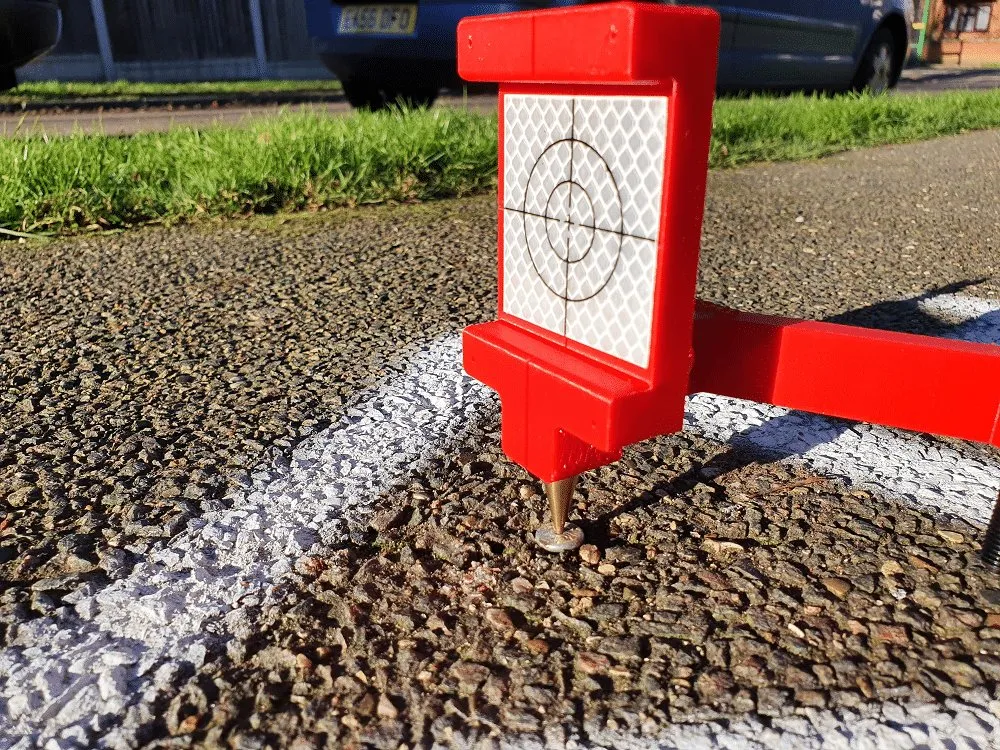

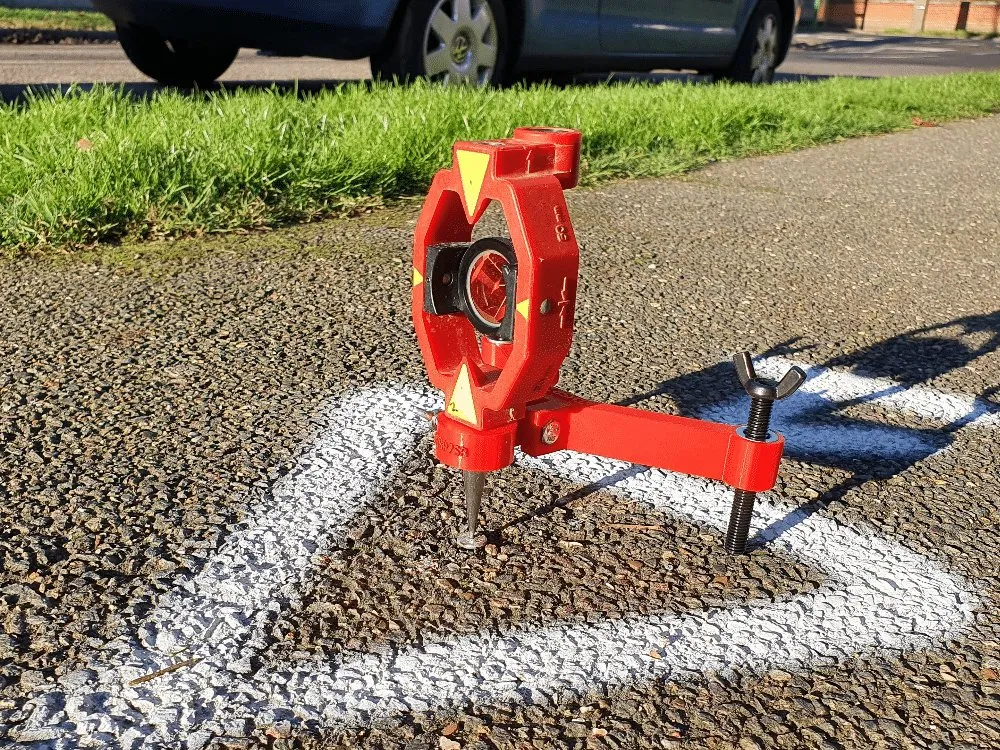

The holder takes a standard mini prism with a 12 mm spike. You can adjust it three ways to set up quickly over a nail, using either a mini prism or the included reflective target at a height of 75 mm.
Shipping and returns
We aim to ship within 3 working days and can ship internationally. Unused, undamaged equipment can be returned within 30 days, and every holder comes with a 2-year guarantee against mechanical failure.
Key features
- One-person setups, no robotic total station needed
- Adjustment bolts for precise levelling over the nail
- Less to steal than a robotic instrument left on site
- Small enough to fit in your site bag
- Level bubble can be calibrated or replaced
Specification
- Material
- ABS plastic
- Reflective target size
- 50 x 50 mm
- Reflective target height
- 75 mm
- Width x length x height
- 155 x 100 x 115 mm
- Prism fit
- Mini prisms with a 12 mm spike

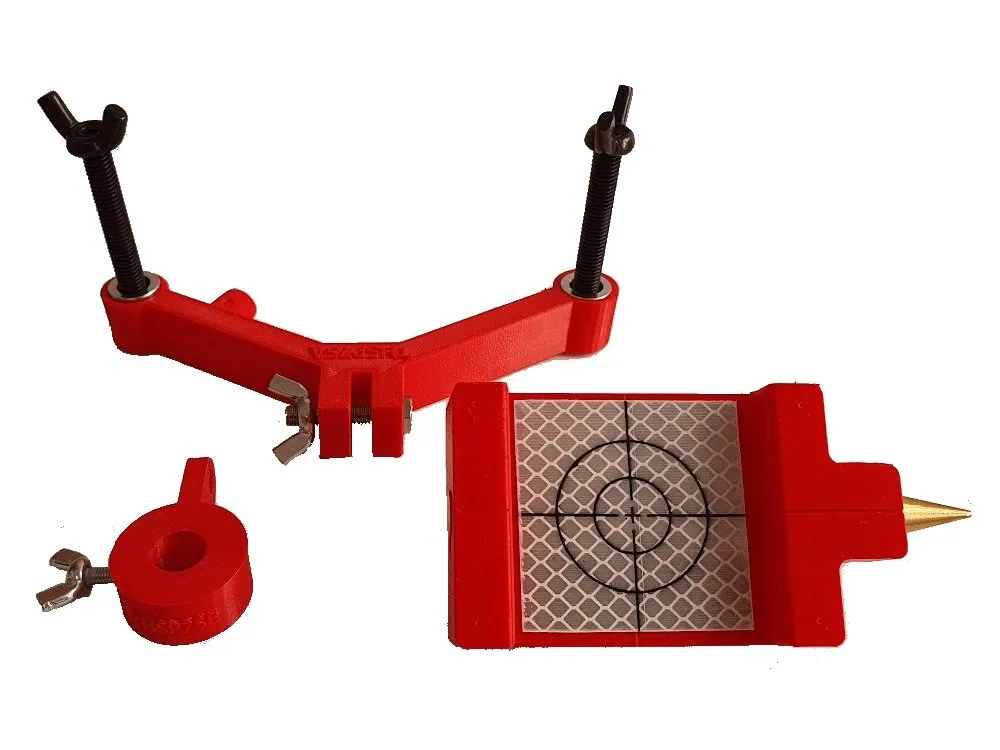

In the box
- THSP75A bipod legs and adjustment block, with every option
- THSP75B mini prism holder, with the prism holder options (mini prism not included)
- THSP75 reflective target and level bubble, with the reflective target options
